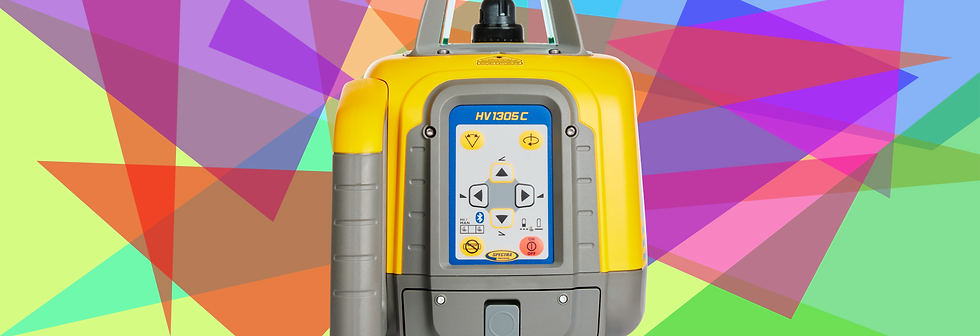

HV1305C
A new generation in visibility and versatility is here!
The automatic self-leveling Spectra Precision® HV1305C red beam laser is the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh job site conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter.
See red.
(From a really long, long distance.)
Key features & benefits:
Complete leveling crew in a case - carrying case securely holds all components, tripod and grade rod (valid for the complete system kit)
-
Automatic horizontal and vertical self-leveling
​
-
Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
​
-
Working range of up to 1200m (4,000 ft) diameter with HL760
​
-
High-visibility beam – easily visible even in brightly lit conditions
​
-
Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
​
-
Rotation selection of 0,10,100, 200,300 or 600 RPM
​
-
Remote control or remote control app allows operation of all laser functions from anywhere on the job site
​
-
Bluetooth connection allows laser control with a smartphone
​
-
Extremely durable and portable with a 5 Year warranty
Choose your HV1305C package with your prefered receiver
Remote control helps your efficiency even more
Split Beam Capable.
Specifications
Leveling Accuracy
± 1.5 mm/30 m, 1/16“ @ 100 ft.
10 arc seconds
Operating Diameter w/HL760
Typ.1200 m (4000 feet)
Rotation
Preset 0, 10, 100, 200, 300 and 600 rpm Adjustable in 10 rpm increments >100rpm
Scan Angles
Preset 5°, 15°, 45° and 90°
Adjustable in 5° increments
Laser Type
630 – 643 nm
Laser Class
HV1305C Class 2
HV1305C Class 3
(Class 2 available in Europe)
Self-leveling Range
Typ. ± 5° (± 8.7%)
Leveling Indicators
LED flashes
Radio Range (HL760)
up to 100 m (330 ft)
Power Source
10,000 mAh NiMH battery back
or 4 x 1.5V D alkaline batteries
Battery Life
HV1305C up to 45 hours
HV1305GC up to 30 hours
​
Battery Charging Time
< 10 hours
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-25°C to +70°C (-13°F to +158°F)
Tripod Attachments
5/8 x 11 horizontally and vertically
Dust and Waterproof
Yes - IP66
Weight
3.49 kg (7.7 lbs)
(incl. Battery pack)
Low Voltage Indication
LED battery indicator
Product Dimensions
240mm x 280mm x 180mm
(9.45 in x 11.02 in x 7.09 in)
Warranty
5 Years
Always ready.
The HV1305C
