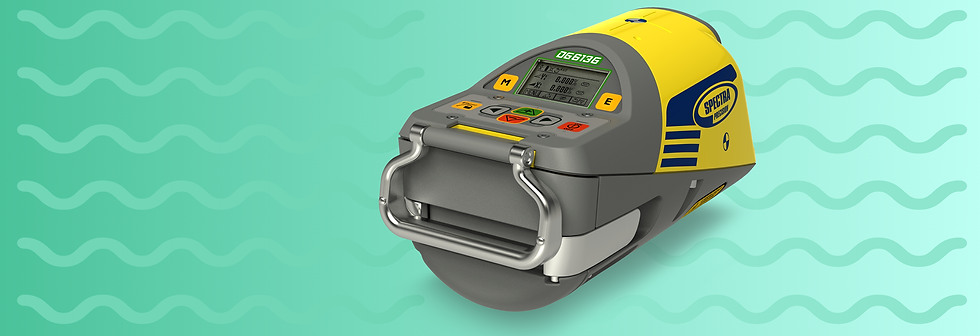

DG613G pipe laser

Compact and Powerful, the DG613G extra-bright green beam laser combines great performance with productivity. Advanced functions are user-friendly and allow for easy, fast set-up.


Fits comfortably into even the tightest spaces.

The benefits just keep coming.

The length of the DG613G has been reduced to make it easier to set up the lasers into tight inverts in the manhole. It has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated – providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert. The DG613G with green beam allows work over a distance of 150m (500ft) – even in brighter conditions – providing full operation in a single set-up between manholes.

Our dynamic duo.

DG613G pipe laser

+

ac 803 remote control

Remote Control RC803

IR operating range (front, through pipe) 150m

IR operating range (back) 10m

Power source 2 x 1.5 V AA alkaline batteries

Weight 153 g / 0.34 lbs w/o batteries

Dimensions 148 x 79 x 33 mm / 5.83 x 3.11 x1.3 in

Warranty 2 Years

Line Alert

This unique feature is ideal for working in high-vibration or wet conditions where the pipe lasers may be disturbed. The beam flashes to notify you that the setup line has been disturbed, eliminating the necessity of rework. Combined with the self-leveling warning, you’ll always complete the DG613(G)/DG813 job correctly, on time and on budget!

line alert

Line Set Check

The Line Set/Check capability of both pipe lasers allows you to raise the beam up to 100% outside of the trench for fast line setup or checking. Raising the laser beam out of the trench to an above-ground stake saves you time - instead of having to move the excavator off line during setup of the pipe laser, you can just get on with your job. In addition, the Line Set-Check feature is ideal for rechecking the line for pipe jacking after each push.

line set

Self-Leveling

The DG813 and DG613(G) feature the largest automatic leveling range in the industry providing quick, easy setups, regardless of grade. Unlike traditional pipe lasers, they eliminate the need for rough leveling and minimize crew training. Simply set up the laser in the pipe, manhole or open cut without the need to swivel or rough level the unit.

self leveling

Simple.
Sturd
y.

Fast.

Features & Benefits

Grade range -12% to +40%

Ultra-fast beam movement

Operating range up to 150 m (500 ft) with radio / IR remote control

Large intuitive graphical display on the laser and remote control

IP68 protection (dust and waterproof)

Flexible power options (NiMH / Alkaline)

Advanced functions squeezing working time: Line Set/Check (first day setup), Line Scan (second day setup) and Line Alert

Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)

Compact length allows easy set-up even in tight inverts

Self-leveling range of -12% to +40% over the entire grade range

Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work

Bright visible beam works up to 150 m (500 ft)

RC803 remote works via radio 130 m (430 ft) „over-the-top“ or infrared 150 m (500 ft) through the pipe.

The DG613G has advanced functions that make setting up and using it easy and accurate

Specifications

Self-Leveling Range

Longitudinal: Over the entire grade range

with automatic cross axis compensation

Accuracy

± 1.5 mm/30 m, (1/16 in @ 100 ft) 10 arc seconds



Laser Type

Class 3A/3R, <5mW OR Class 2



Power Source & Life

10000mAh NiMH battery pack

DG813, DG613: red - 40 hours NIMH - DG613G: green - 30 hours NIMH

Grade Range

-12% to +40%

Operating Range

up to 150 m (500 feet)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Operating Temperature

-20°C to 50°C (-4°F to 122°F)



Dust & Waterproof

Yes. IP 67

Weight

3.98 kg (6.61 lbs)

Tripod Mount

5/8 x 11 horizontall

Warranty

5 Years
